Mining & Resources

Crawler Systems

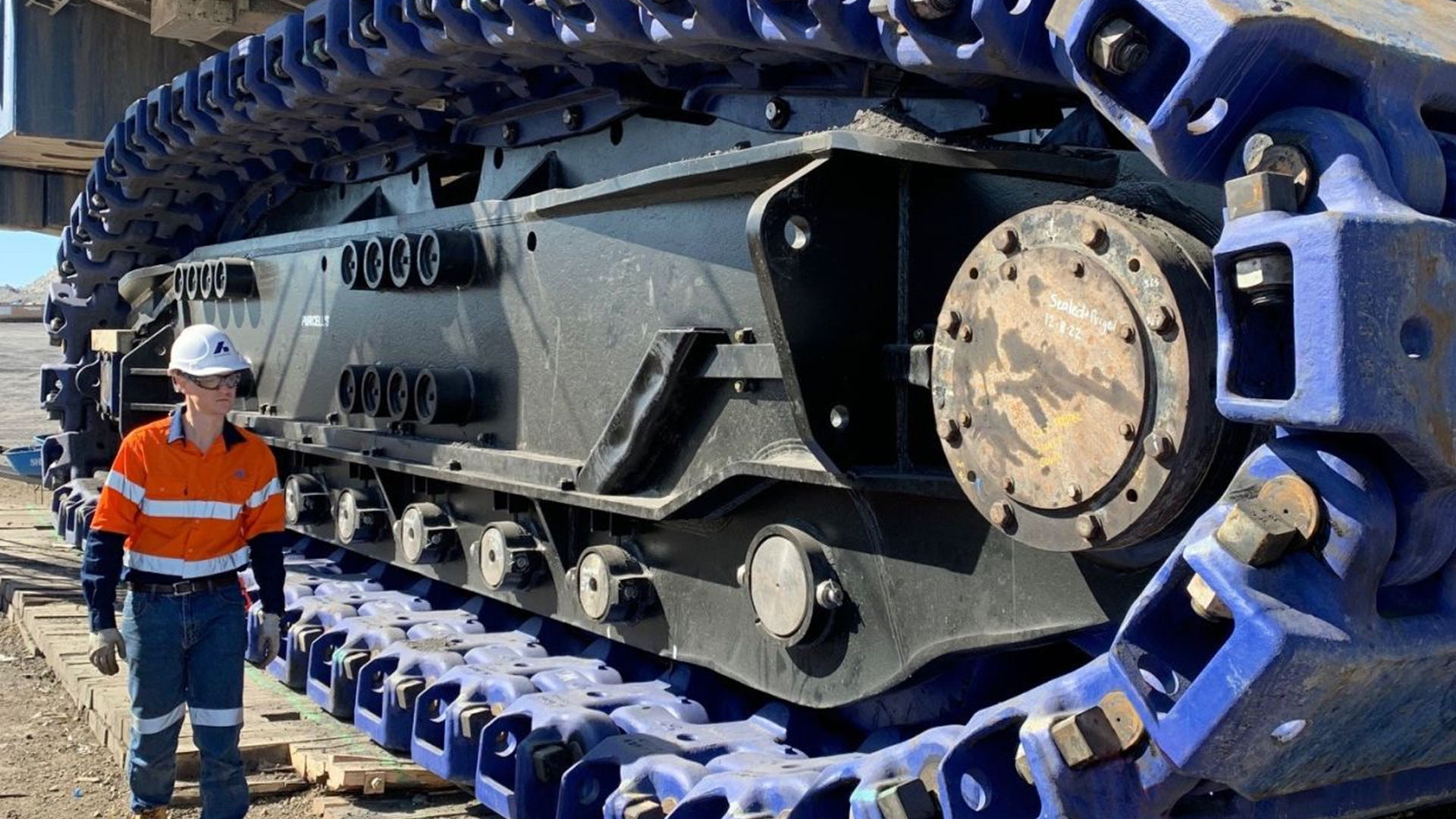

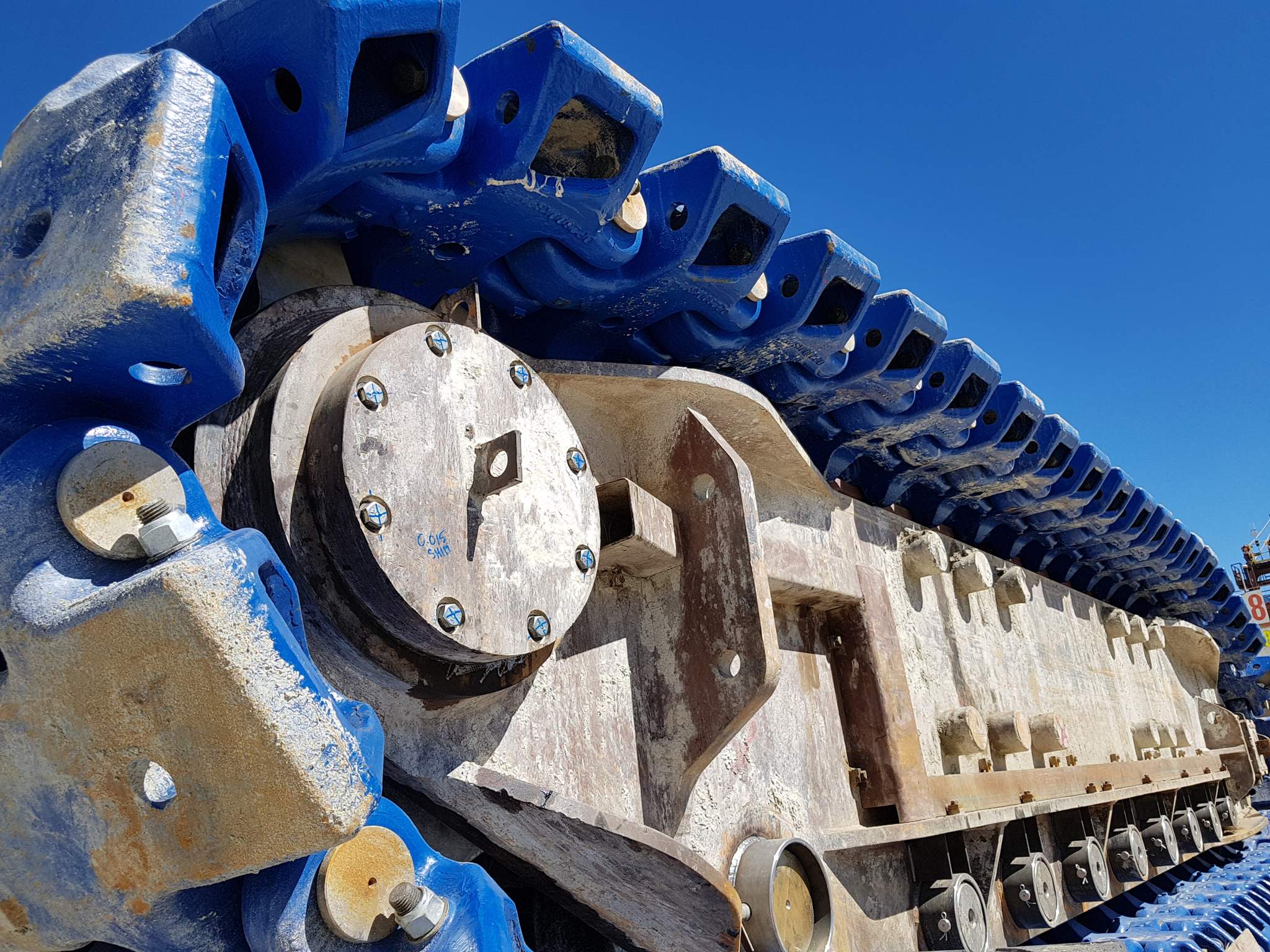

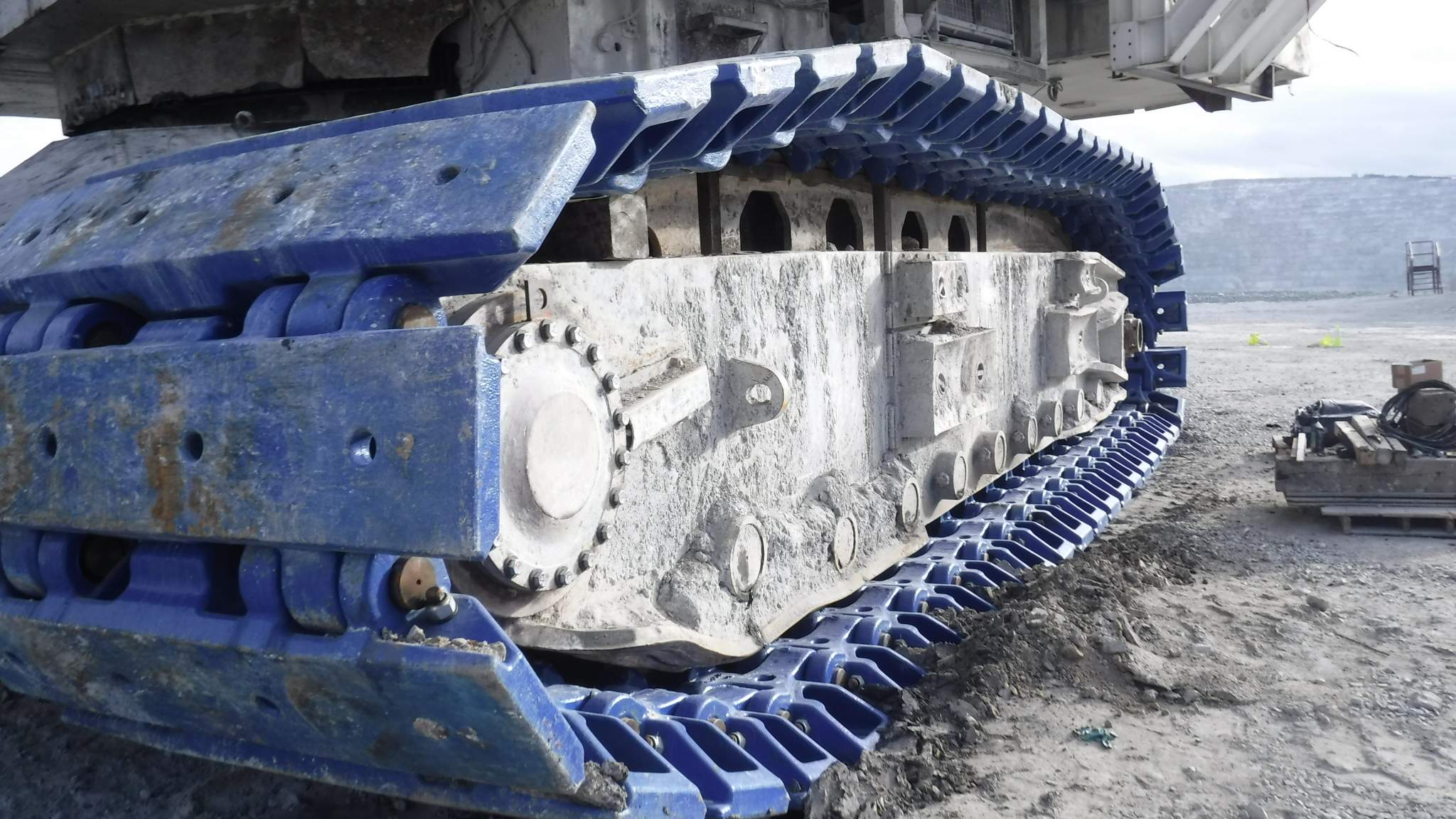

Bradken is a global leader in crawler system design and manufacture for large hydraulic excavators and electric rope shovels.

Our reputation for high-quality, dependable undercarriage products has been proven over decades supplying to mining markets around the world.

We are one of the largest manufacturers of undercarriage for mining machines over 200T. Over the past 25 years, we’ve manufactured and supplied more than 250,000 crawler shoes for mining customers worldwide.

By focusing on our customers’ undercarriage requirements we are able to offer effective, site-specific solutions, that provide superior performance with minimal maintenance. In order to continually improve our product offering and to help our customers achieve the maximum life expectancy from their undercarriage components, Bradken provides a crawler system monitoring program. This service assists mine operators to obtain an accurate assessment of the amount of wear on their undercarriage components.

Crawler Systems

By focusing on our customers’ crawler and undercarriage system requirements we are able to offer effective, site specific solutions, that provide superior performance with minimal maintenance.

Key products

Crawler Shoes / Track Pads

Drive Tumblers

Front Idlers

Return and Load Rollers

Liebherr R996B Undercarriage Solution

Wide Roller Path (WRP) Komatsu® (P&H®) 4100XPB/XPC Rope Shovels

Bradken 6060 Undercarriage

Bradken® Undercarriage for 6090 Machines

Abrasion wear and combating extreme conditions

The majority of the world’s mining regions face abrasive wear due to the quantity and nature of mineral fines on-site. Rock dust, combined with water creates an abrasive slurry that plays a significant part in accelerating wear and reducing undercarriage service life. Our unique induction hardening processes achieve greater case depth than competitor products, resulting in greater wear life of these components. Our proprietary, through-hardened alloy, offers an alternative unique to Bradken undercarriage products, prolonging shoe life in systems that have sufficient space for interconnecting parts to wear. Finally, all Bradken undercarriage designs are optimised to maximise wear face contact areas, minimising contact pressure and reducing the detrimental effect of abrasive wear.

Bradken’s undercarriage components are designed to withstand the extreme mining conditions of the Arctic regions (Russia, Canada, Mongolia and Kazakhstan) where temperatures can drop to -60°C. Bradken’s proprietary alloys and processes maximise impact strength and toughness over a wide range of operating temperatures. While our alloys ensure reliable performance in extreme temperatures, we also carefully select our lubricants for our range of rollers and idlers.

Extremely corrosive conditions such as those experienced in sulphurous volcanic geologies, particularly when water combines with volcanic fines to create a corrosive slurry, can adversely affect the life of undercarriage components. Bradken’s precision-machined components and sealed-for life rollers minimise ingress of detrimental material, and Bradken uses only the highest quality alloys to ensure component durability in corrosive environments.

Crawler Systems

Wear Monitoring Services

By focusing on our customers’ undercarriage requirements we are able to offer effective, site specific solutions, that provide superior performance with minimal maintenance

Learn More

Resources for Crawler Systems

Crawler Systems Brochure (English)

Crawler Systems Brochure (Spanish)

Crawler Systems Brochure (Portuguese)

Wide Roller Path Flyer English

Crawler Installations Globally (English)
